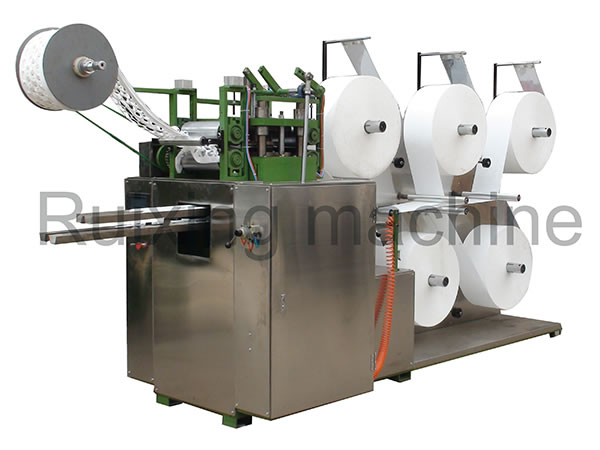

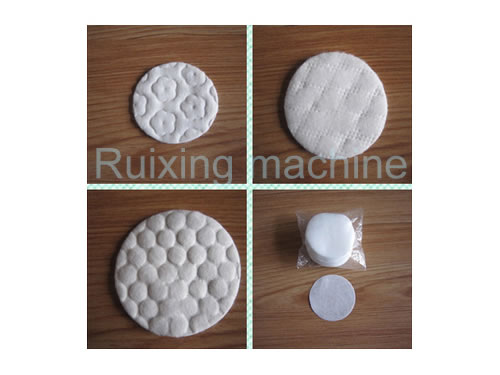

The QX-Rd make-up removal pad machine is a cotton pad converting machine designed specifically for die cutting and stacking of round cotton pads, also called cotton rounds. This cotton round machine features manufacturing technology that can seal a cotton pad edge, or leave it unsealed. It can also produce round make-up removal pads with the edges punched.
From the raw material to the end product, the make-up removal pad machine can complete each process, including material feeding and conveying, heat embossing, punching, and die cutting, waste rewinding, counting and more, all automatically. Products made on the beauty products machine come with an excellent water absorption and ensure a soft and comfortable feeling when used on your skin.
Specifications
Model: QX-Rd
Roll material breadth: 250mm
Material roll diameter: 700mm
Slitting device: Circular knife in misplaced arrangement
Embossing device: Steel roll with embossing figure customizable
Product size: Customizable
Counting method: Half piece counting
Raw material: Pure cotton, non-woven fabric, cotton cloth
Control system: PLC, Servo control
Power: Motor
Parameter setting: Color touch screen
Production speed: 800 pads/minute (5 layers of materials)
Compressed air: Customers provide for themselves
Power supply: 380V, 50Hz, 7.5Kw
Weight: about 2600kg
Features
1. The make-up removal pad machine can reduce raw material waste.
2. It is designed with a set of steel rolls to roll heat the embossing devices. The embossing figure can be customized according to customer requirements.
3. The cutting devices are made of premium special materials, ensuring a precise cutting and high product accuracy.
4. Our make-up removal pad machine is equipped with three tension control devices and a waste automatic rewinding device.
5. Automatic counting devices improve the production efficiency.
6. The material width depends on the size of the molds.
7. The round cotton production equipment uses a can drive and is designed with 2 sets of wear resistant rubber rollers and aluminum alloy guide rollers for material conveying.
