4 Color Printing Machine

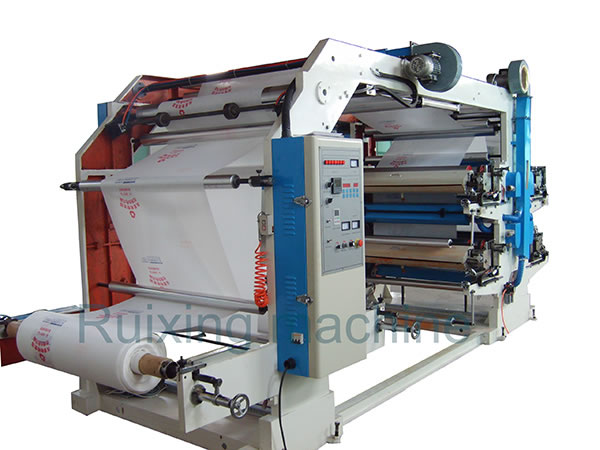

Our 4 color flexo bag printing machine can print 4+0 colors, 3+1, and 2+2 colors on bags with a printing length ranging from 229mm to 1000mm, it is idea equipment for printing on non-woven bags.

This non-woven bag printing machine is equipped with a microcomputer control system and 7 groups of hot wind drying systems, making it suitable for different printing speeds while still ensuring the printing quality.

In addition, this printing machine comes with a meter counter that enables operators to set the amount of bags to be printed based on different requirements, and achieving various automatic stop functions when needed on bags that have already been printed or there are no materials.

Specifications
Model: QX-41200
Printing colors: Four color printing
Max. Printing material width: 1200mm
Max. Printing width: 1160mm
Printing device: High precision chrome plated anilox roller
Printing length range: 228-1000mm
Max. Nonwoven roll diameter: 1100mm
Slab rubber roller perimeter: 600mm
Parameter setting: Microcomputer control system
Speed: 50-80m/min
Compressed air: Customers provide for themselves
Power supply: 380V, 50Hz, 11Kw
Weight: about 4800kg

Features
1. The main machine on the non-woven bag machine is equipped with a variable frequency motor for speed adjustment.
2. It is designed with 4 chrome plated anilox rollers. 2 of the rollers come in 100mesh/inch and the other 2 come in 80mesh/inch.
3. The rising and falling actions on the printing plate is air operated, making sure the ink can be stirred automatically and independently after the printing plate rises.
4. The flexo printer is supplied with a 360°continuously adjustable registering device.
5. This bag machine features a single unwinding magnetic powder tension control and torque motor winding control.
6. Material feeding is carried out pneumatically and automatically.
7. Unwinding and the winding shaft are both an air swelling shaft.
