QX-80c Wet Wipe Machine

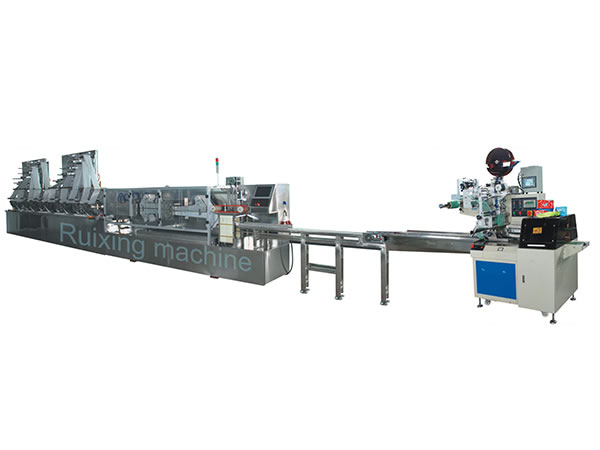

The WX-80c wet wipe machine is an automatic wet tissue production line designed for converting non-woven material into diverse wrapped wet wipes, including baby wet wipes, make-up removal wet wipes, feminine hygiene wet wipes, and more, with different size options and optional lotion. The production speed of the wet wipe converting machine reaches up to 1800-2500 wipes/minute, or 10-30 packs/minute.

This wet wipe machine can automatically complete each process in one stroke, covering non-woven slitting, cross folding, liquid adding, counting, stacking, discharging, packaging, and labeling. By doing so, the working efficiency is significantly improved.

Technical Parameters
Model: QX-80c
Wet wipe size (L×W): (100-200mm) × (80-100mm) (Other sizes can be customized)
Packaging size (L×W×H): (110-330mm) × (30-130mm) × (10-65mm)
Folding patterns: N, in half, cross fold
Applicable material: Roll type spunlaced, hot wind and needle punched nonwoven materials (diameter≤1000mm; breadth:200-250mm)
Control system: PLC
Power: Variable frequency motor
Parameter setting: Color touch screen
Production speed: 1800-2500 sheet/min.
Compressed air: Customers provide for themselves
Power supply: 350V, 50Hz, 11Kw
Weight: about 5500kg

Features
1. The fully automatic wet wipe machine uses an imported PLC controller with a touch screen. Using this, the product length, stacking number and production speed can be set.
2. This wet tissue machine is equipped with 2 sets of 1.2mm slitting devices as well as an air operated automatic feeding device, air expanding shaft unwinding system, a pneumatic conveyor, and a slitting knife shift unit.
3. The wet tissue machine comes with a cross-fold folding system equipped with 20 sets of folding legs. These folding devices are made of 304# stainless steel, using a wire-electrode cutting method, which ensures a stable performance, and an easy operation and adjustment.
4. As it is equipped with a warning system and a complete set of liquid adding systems, this wet wipe machine carries out an intelligent, hygienic and safe production.
5. A self-diagnostic function clearly displays any faults.
6. Due to the high touch photoelectric color mark tracking device and digital input, the cutting and sealing positions are more precise.
7. The wet wipe packaging machine has a reciprocating end seal device, making the seals tighter and the cutter loss free.
