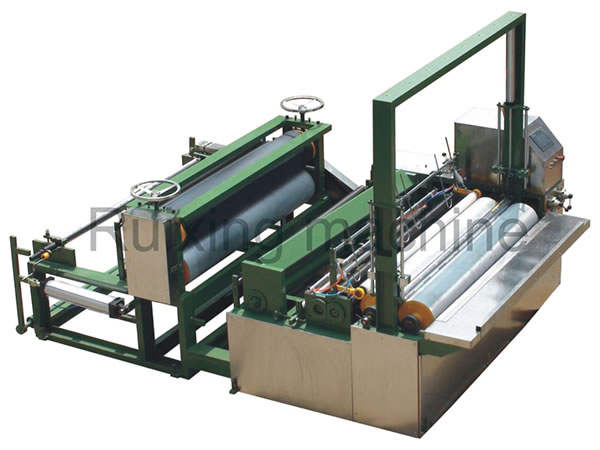

QX-RB Slitter Rewinder

Here at Ruixing, as a leading non-woven equipment provider, we offer customers the excellent WX-RB slitter rewinder. This converting equipment with a servo control motor can complete embossing, scoring, counting, slitting, and rewinding processes, ensuring a flat end face and a clear score. It is a preferred choice for slitting and rewinding spunlaced, needle-punched and wood pulp non-woven materials.

Specifications
Model: QX-RB
Slitting device: Shear type round knife
Scoring type: Spiral scoring
Rewinding type: Pneumatic
Controller: PLC and Servo motor
Drive: Servo motor
Parameter setting: Color touch screen
Compressed air: Customer Provided
Power supply: 380V, 50Hz, 5.5Kw
Weight: about 3500kg (Specific weight depends on machine configurations.)

Features
1. The rewinding roll on the slitter rewinder with pneumatic knives is designed with knurls and is electroplated. It is also equipped with a set of large scale embossing units, including an electroplated roll and wool covered roll. The embossing patterns can be customized for customer requirements.
2. The non-woven machine comes with a pneumatic automatic web feeding device. The wide belt conveyance system is air operated, and features automatic counting and stop functions using an infrared ray.
3. Slitting knives on the non-woven slitter rewinder use an air operated lifting device, improving the knife’s service life. The rewinding roll has a variable speed control unit that can automatically adjust the rewinding speed.
4. The combined control of the PLC and servo motor make the perforating pitch adjustable.
5. The speed for embossing, scoring, slitting and rewinding is adjustable. The slitting size can also be adjusted at will.
6. The parts of the QX-RB slitter rewinder that have an impact on the product in production are all made of stainless steel. All parts are electroplated and are rust and delamination proof for up to 2 years.

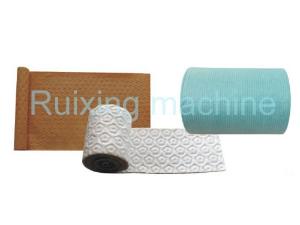

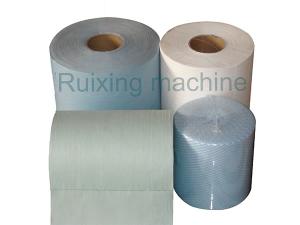

This slitter rewinder can be customized with an embossing system upon request by the customer. It can produce both cored and coreless rolls and rolls with or without scoring. The rewinding machine can also be equipped with an adjustable rewinding roll tension controller for multiple purposes.

Customizable Embossing

  • Embossing by wool roller to steel roller
  • Embossing by wool roller to steel roller
  • Embossing by steel roller to steel roller
  • Ultrasonic embossing
